K&M M17S 223 Review

KM Arms M17S

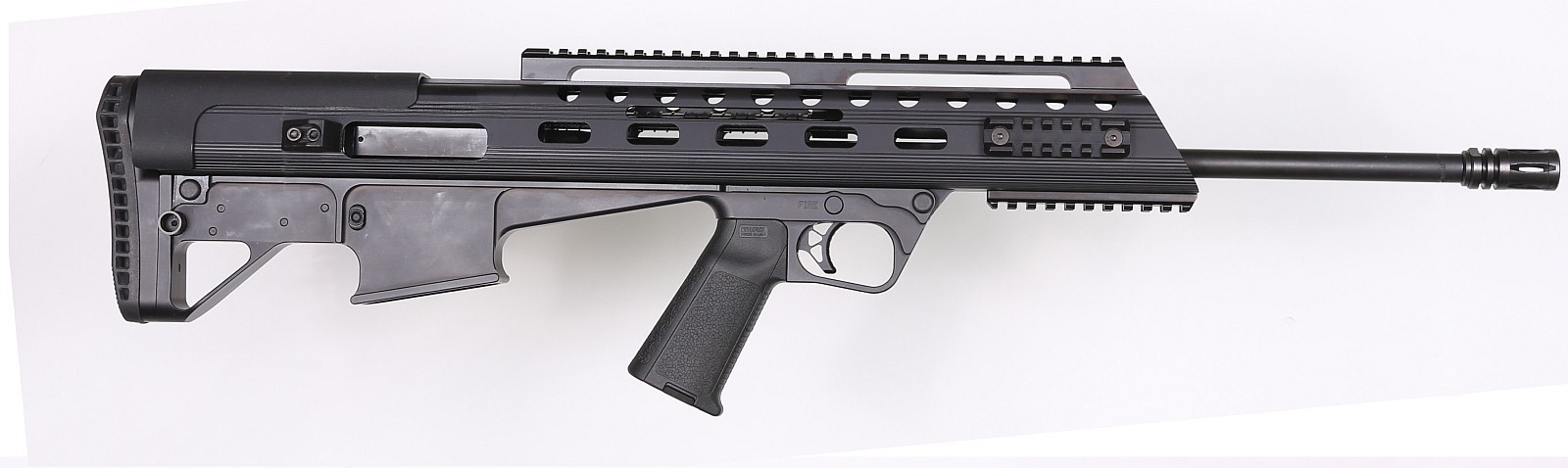

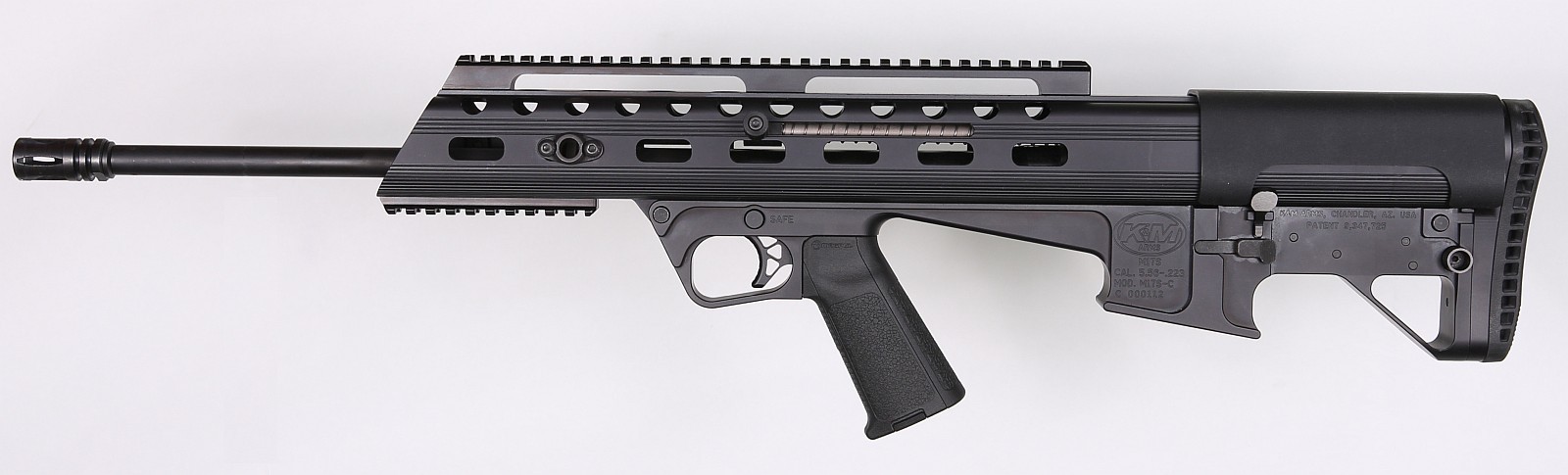

Way back in 80s & 90s, Bushmaster bought the design for a bullpup rifle called the M17S. It was a short stroke, gas driven semi-auto that uses many AR180 parts in a bullpup configuration. Bushmaster stopped making it but more recently, K&M Arms has brought out an upgraded version of the bullpup rifle and on top of that, they’re getting 223 and 308 versions for Canada. The version tested here, the M17S-C is the Canadian barrel length, non restricted version.

The K&M M17S has some really high end touches for a rifle that you get out of the box. Namely: a very high quality adjustable trigger pack, ambi mag release and ambi safety, adjustable gas system, and modular forend. Those features don’t show up on the cheapest AR15’s out there. Many of the other specs are surprisingly solid choices:

  • 20″ 1:8 223 wylde chambered barrel with flash hider
  • Adjustable gas system
  • Non reciprocating charging handle that you can swap to either side
  • 3.5-5lb adjustable trigger pack (really looks like an Elftman, broke at just over 4lbs on my trigger scale)
  • QD sling adapters on both sides of the butt
  • Ambi mag release

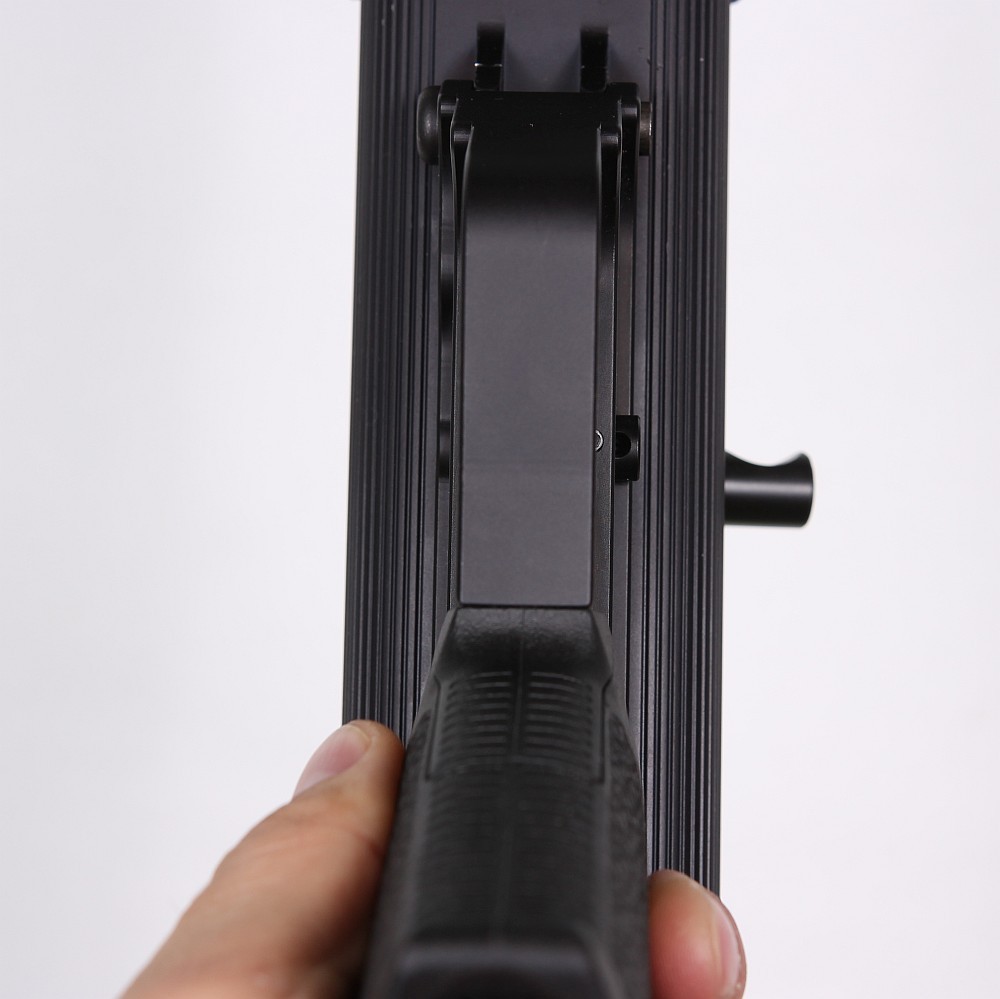

  • Crossbolt safety (kinda ambi)
  • Standard, non-beavertail AR15 pistol grip
  • Kydex cheekpiece (I think it’s kydex)
  • Super well ventilated, modular forend
  • 7.8 (?) lbs

M17S Video Review

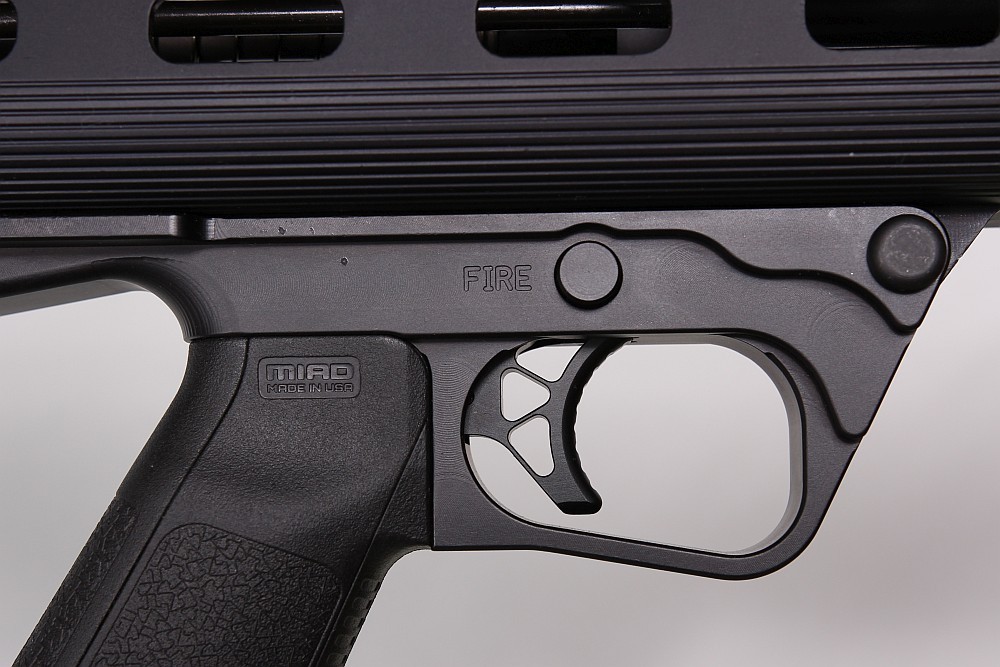

The K&M M17S Trigger

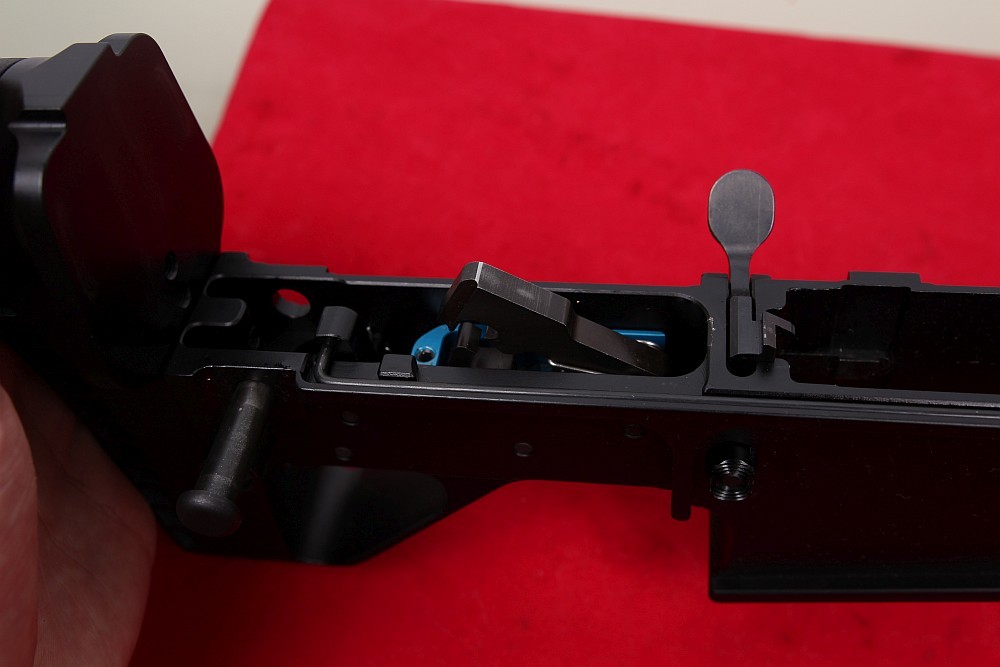

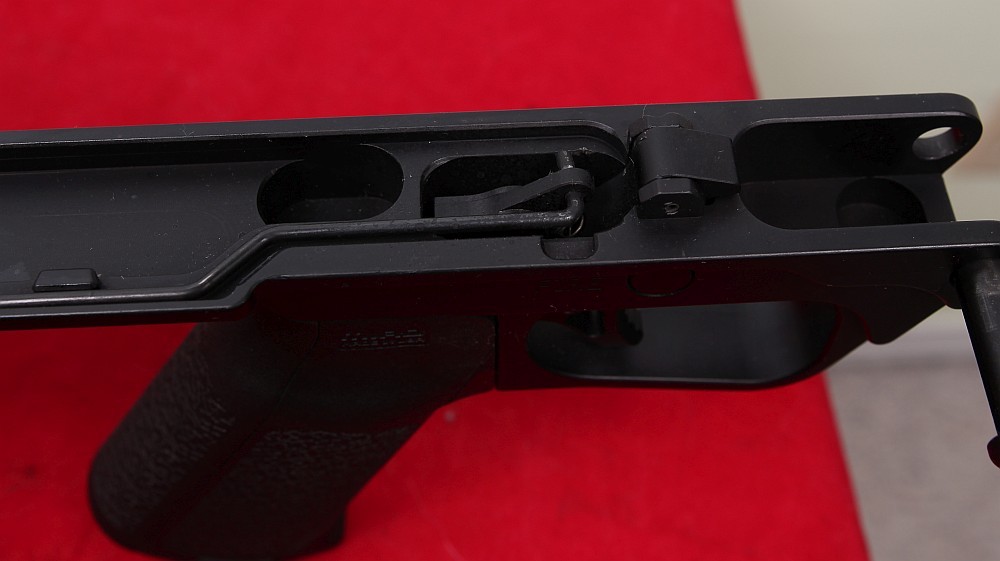

Triggers are usually pretty bad in bullpups due to the linkages they need to connect the trigger with the hammer/sear at the back of the gun. The IWI Tavor I reviewed had a miserable heavy and gritty trigger, while the T97 was very long, but not too heavy. K&M’s version of the M17S has a fantastic drop-in trigger pack and well designed linkage. I measured the trigger at a short pull and at 4 lbs in weight. I think it’s an Elftmann, and those go for about $300-$400 here in Canada, so this is a huge addition to the rifle and its value.

The Action

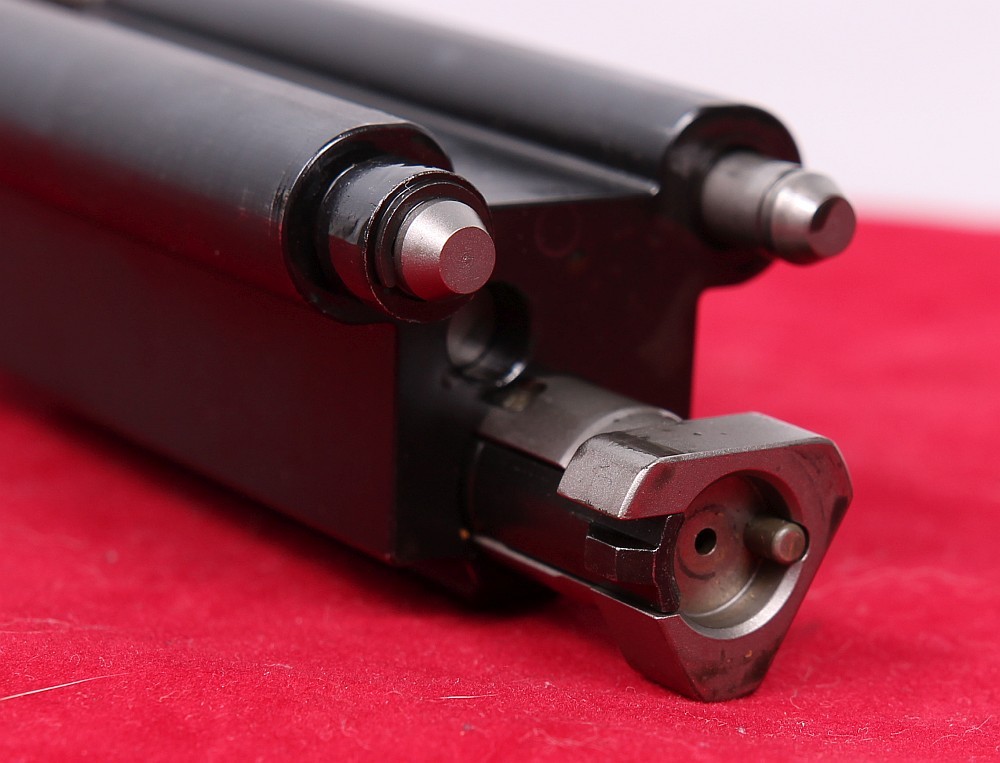

I’m a big fan of the AR180 action. While I don’t think it’s superior to the AR15 action in every way, it’s a very robust, simple, smooth action. The way that K&M integrated their charging handle in the system was super smart. The M17S differs slightly from the AR180 where it uses a triangular bolt head. The gas system uses the cup and piston of the AR180, also very similar to the SVT40.

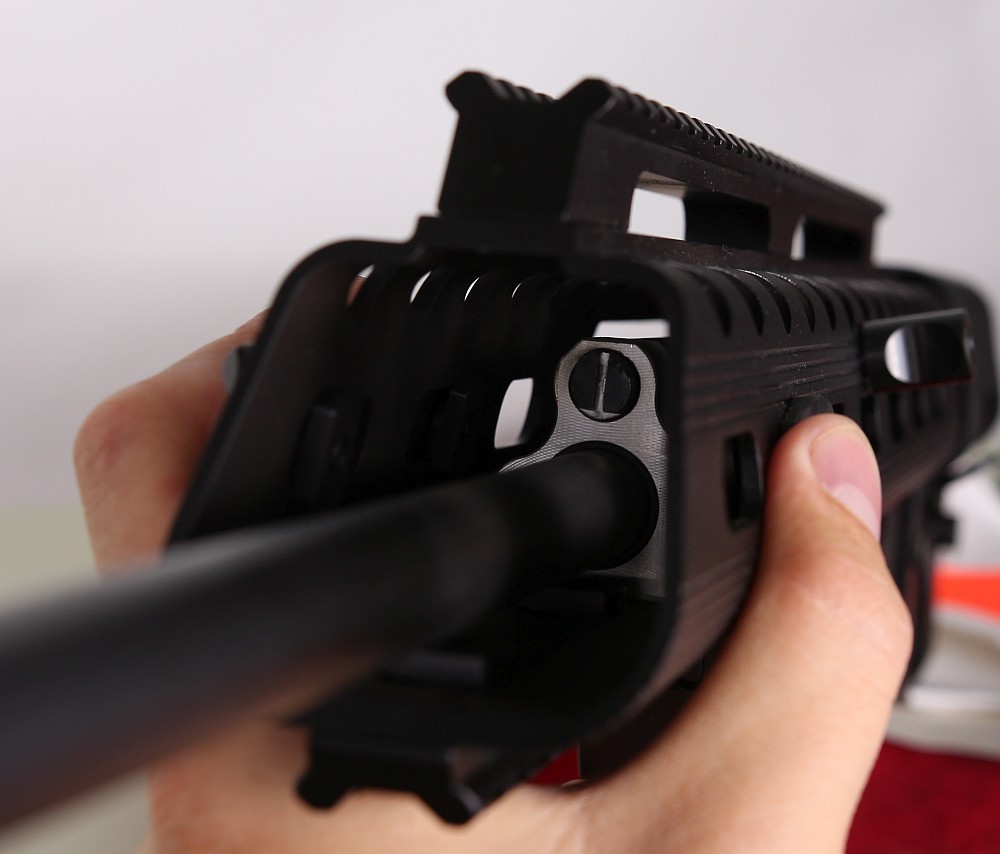

The gas system differs in that it uses an adjustment screw that’s accessible from the front via a flathead screwdriver, so you can adjust the amount of gas activating the action.

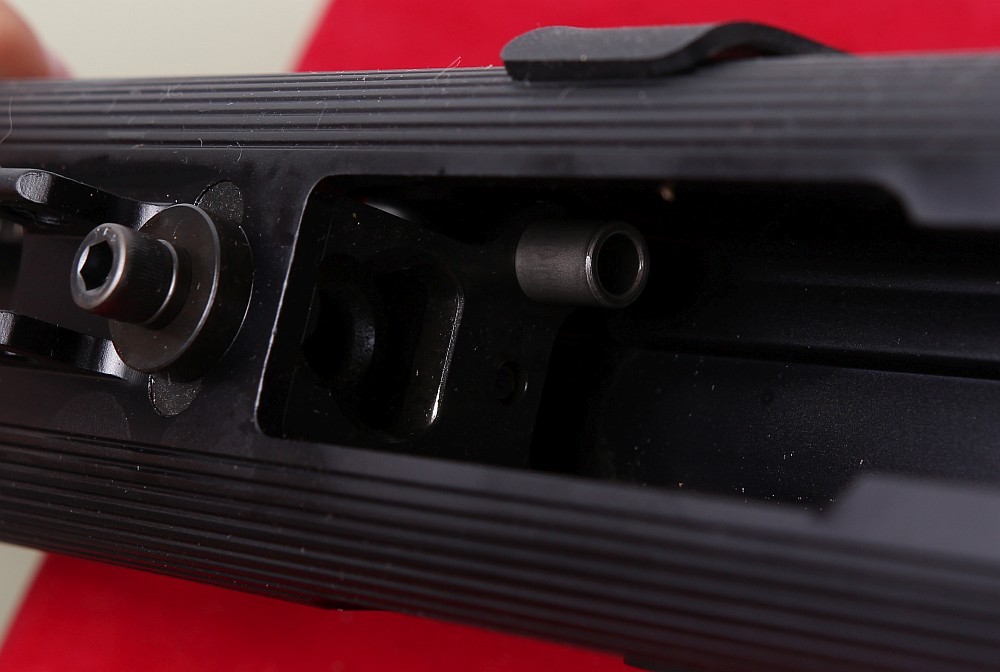

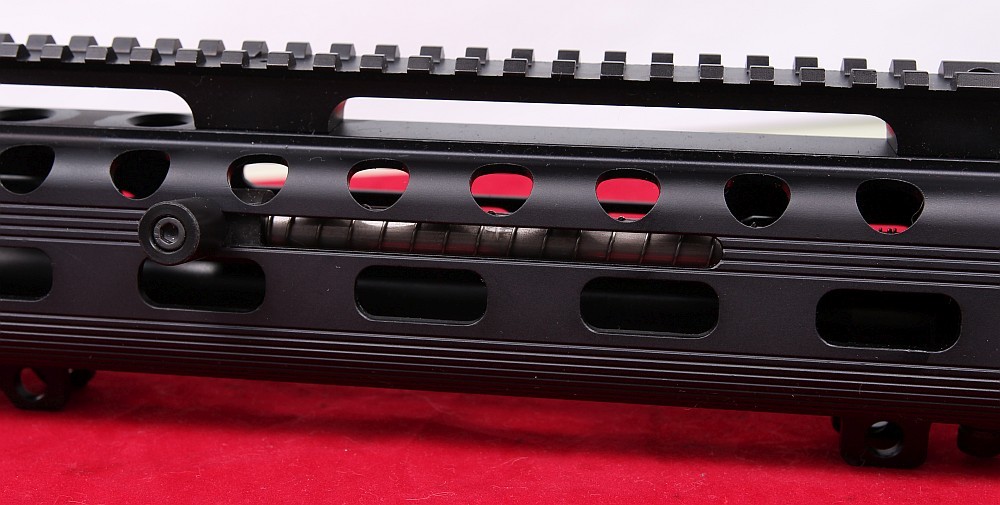

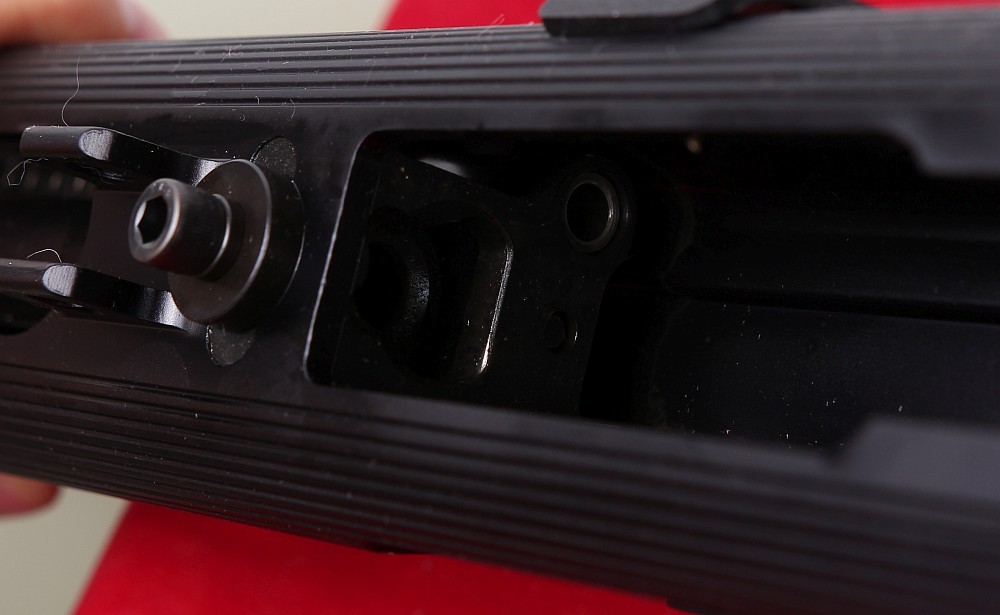

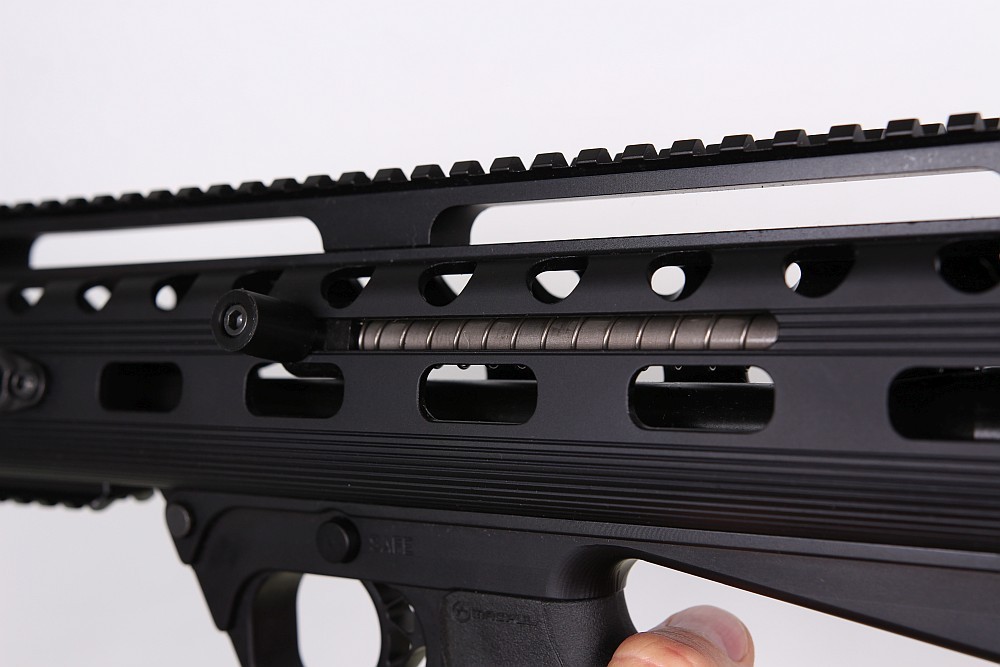

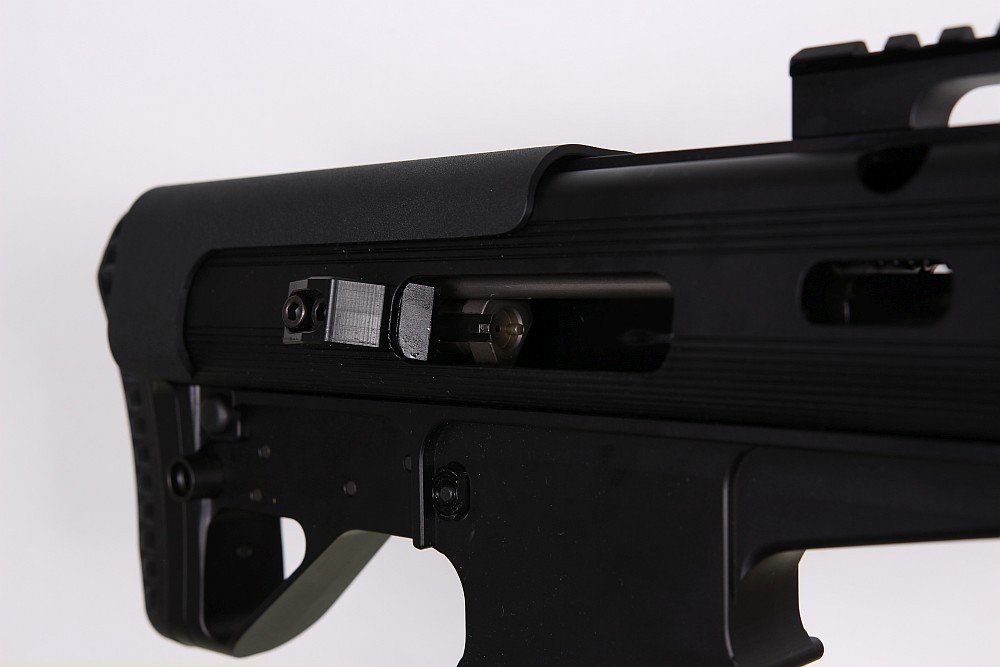

The charging handle is a sleeve that slips over either of the dual guide rods and pushes back against the bolt/bolt carrier group. It’s clearly a high quality, well designed setup that’s far better than the weird carry handle/charging handle on the original M17S.

The Upper

The upper on the K&M M17S is an extruded piece of aluminum that maintains its profile for the whole length, but it importantly differs from the original M17s in a few ways:

  1. It’s better ventilated, so it shouldn’t get hot to hold as badly as the original M17S
  2. It uses modular sections where you can place rail or QD sling attach points.
  3. It has a rail along the top for mounting optics, instead of a carry handle like the original

Disassembling the M17S

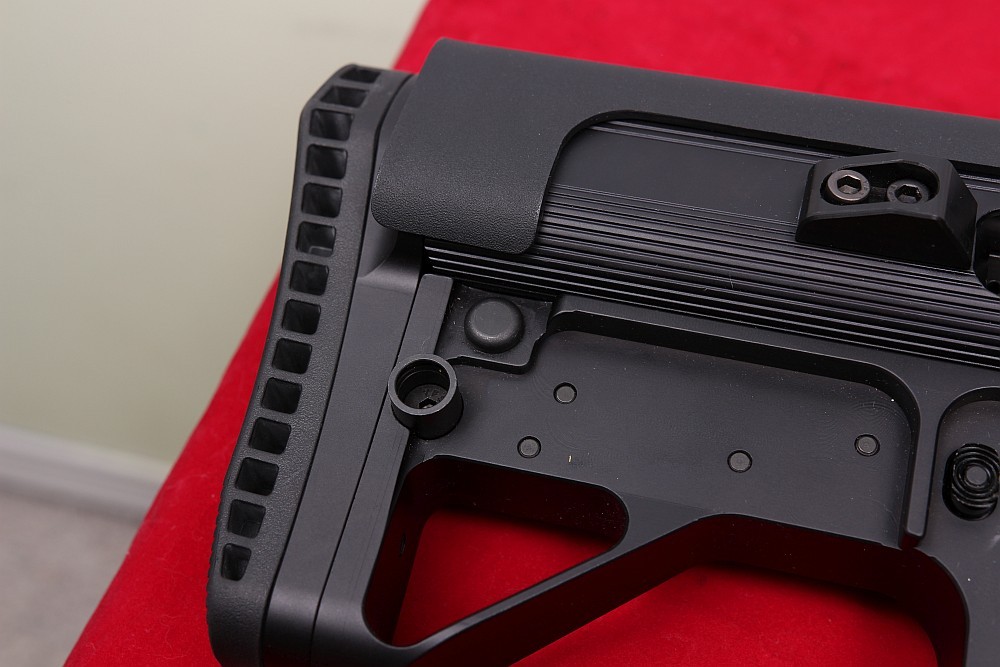

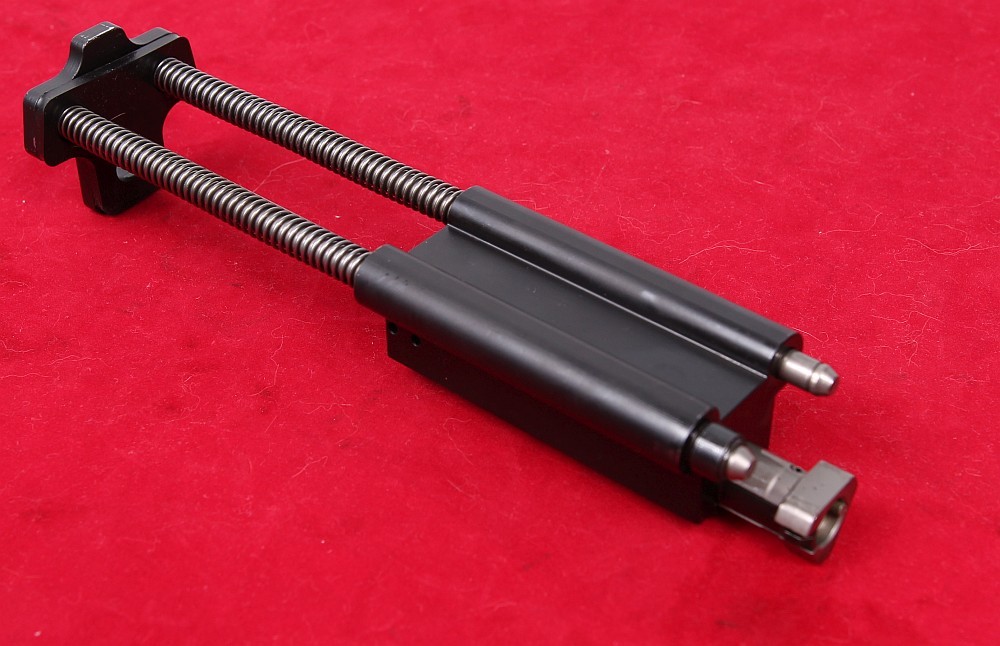

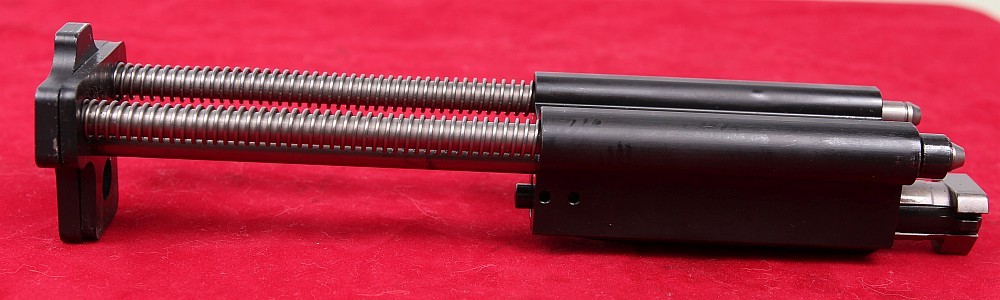

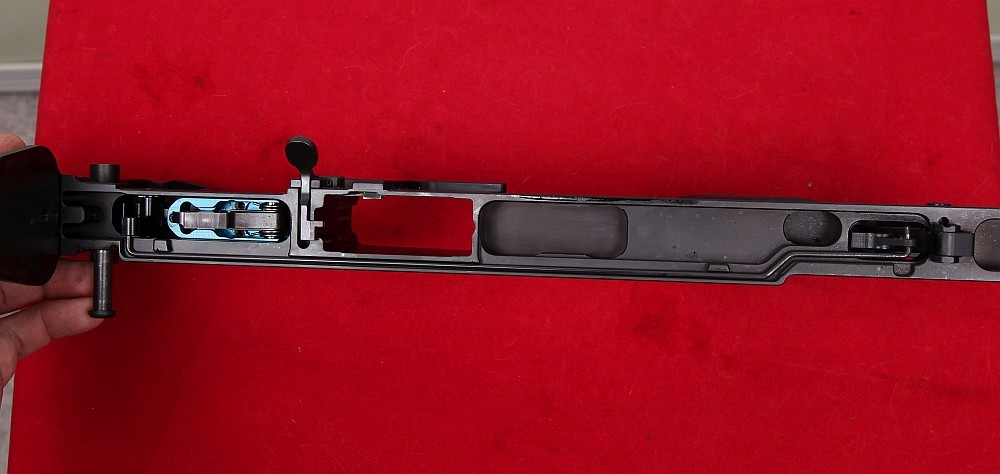

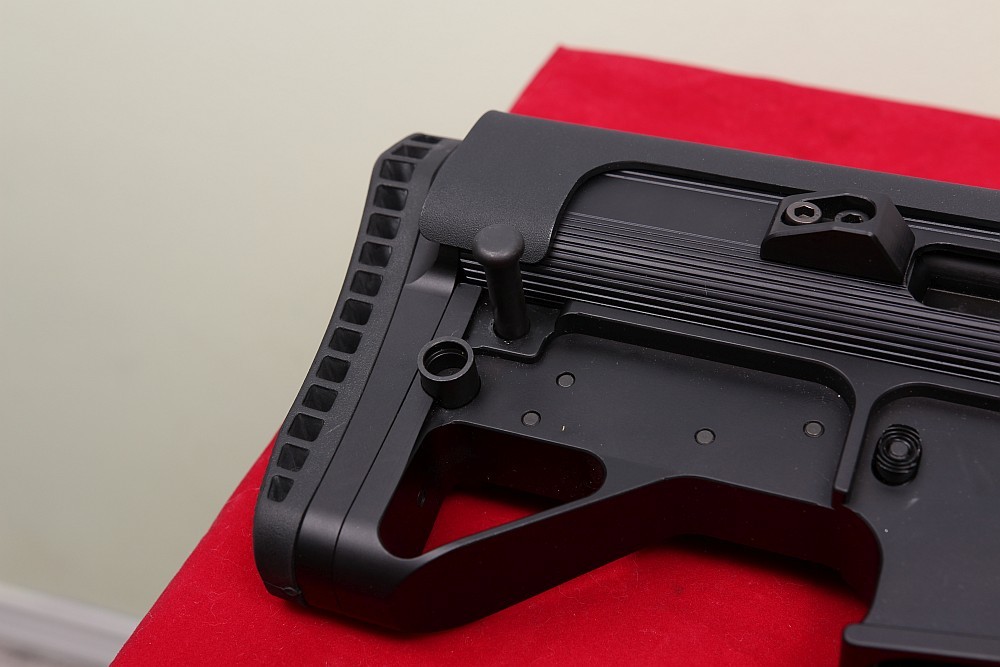

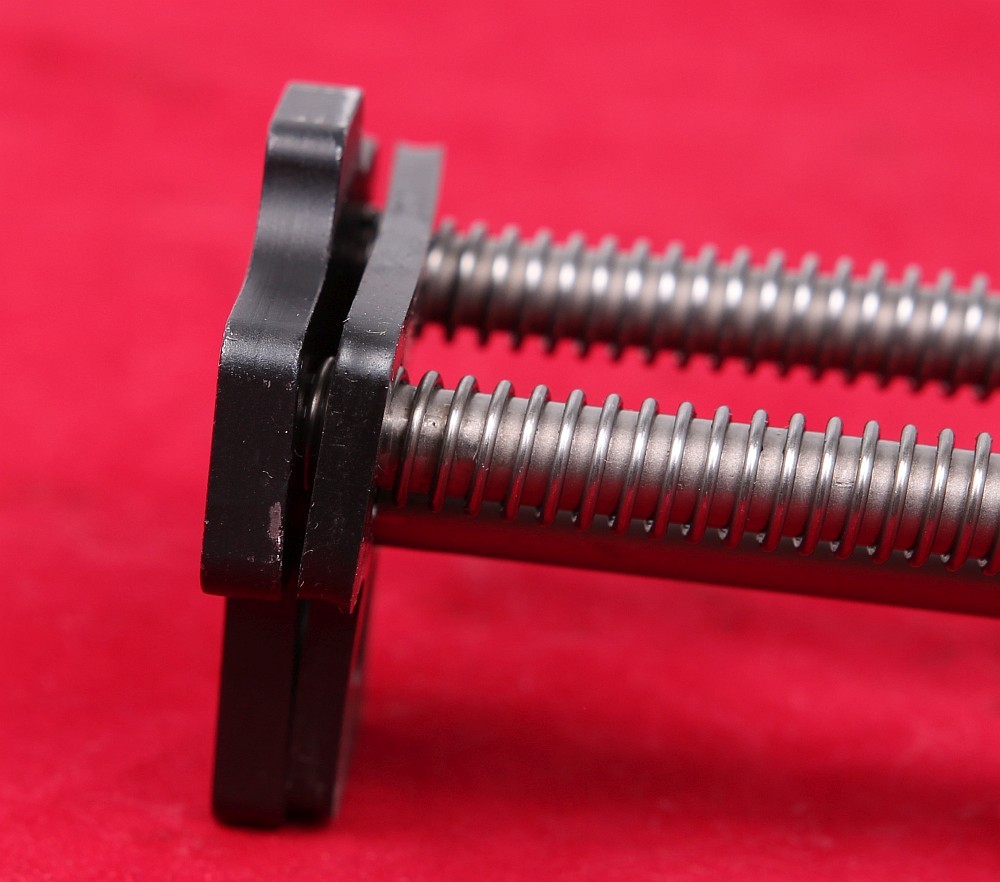

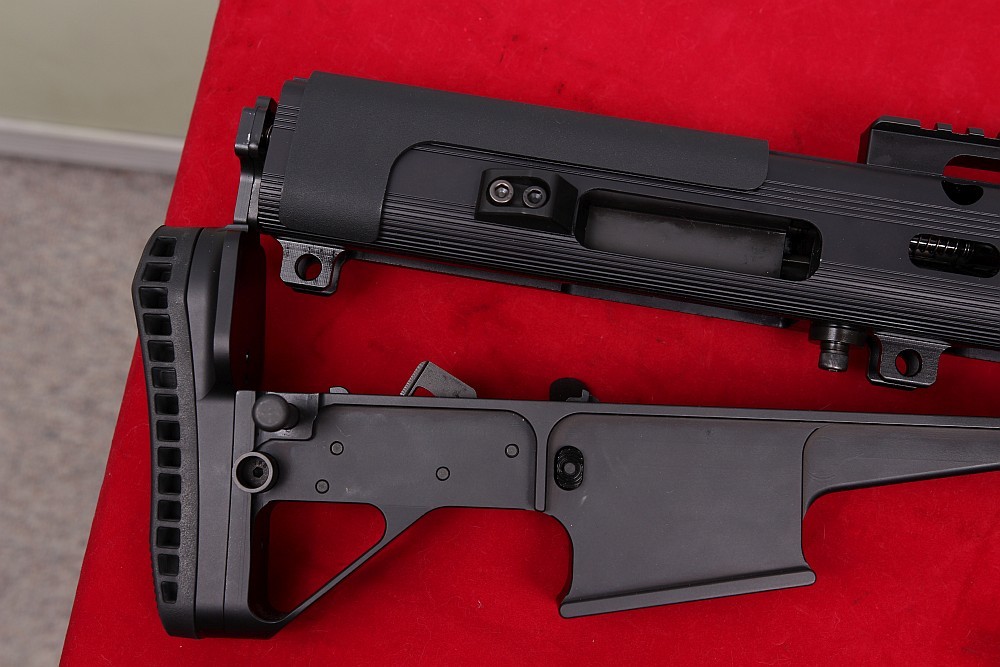

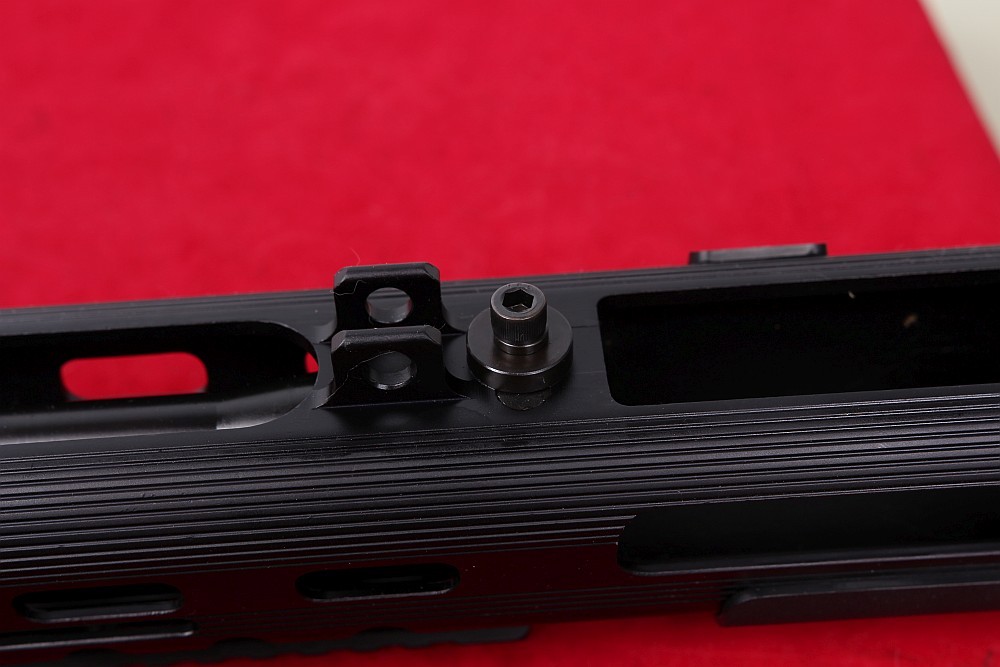

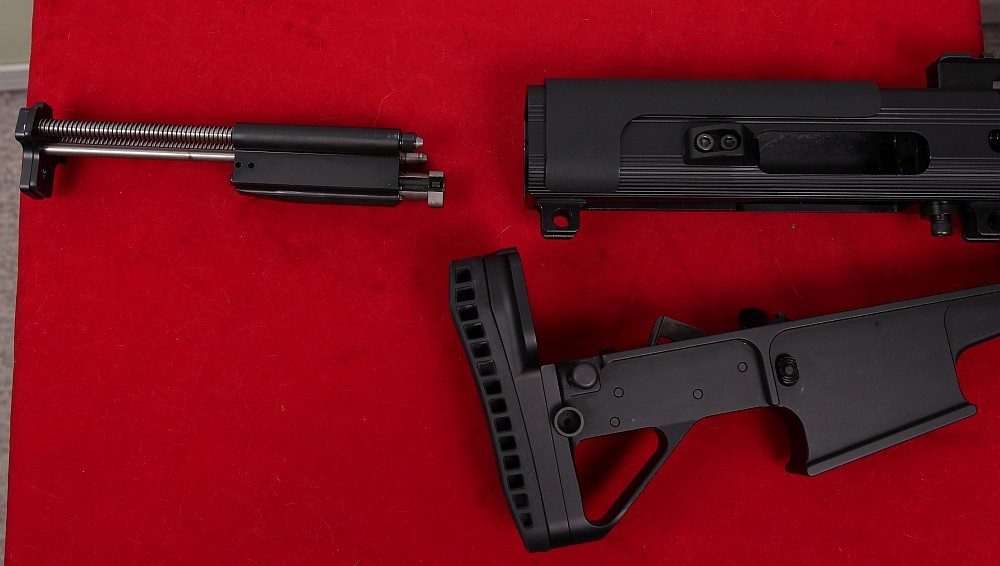

Dare I say that field stripping is easier than an AR15? 2 pins hold the upper to the lower, and pushing out the rear one allows it to pivot on the front: just like on an AR, but the bolt, guide rod and spring assembly can just be taken out the back afterwards. No turning the bolt to the right spot since the bolt is spring loaded, no fiddling with a charging handle to get it into a slot, it’s all just there and it is ready to just fall out since the rear is unlocked and the Bolt Carrier Group (BCG) is effectively disengaged from the rails.

Large magnification scope used for accuracy testing

K&M M17S Accuracy

I found the M17S to run 5 round groups in the 1″-1.5″ range pretty reliably. I shot about a dozen groups at 100 yards using a 6-24×50 Sightron to check for accuracy. Reliability was 100% during testing.

Using Bullpup Rifles

Shooting the M17S comes with some of the standard bullpup rifle consolations: they’re harder to shoot from a rest or rested with the forend on anything, reloading magazines in your armpit is a pain in the butt, and they have higher sight over bore than a traditional rifle. On the bright side, they’re super close to the body when shooting offhand so new shooters love em, and they’re super easy to carry from a sling since they’re so compact. They don’t get in the way like a long traditional rifle does.

Summary: The Best NR Bullpup in Canada

When you package the price with the fantastic trigger, solid design, and premium materials, the K&M Arms M17S is easily the best bullpup 223 available in Canada. The charging handle is a delight to use, the safety is up front, the rifle cycles really nicely, the trigger is fantastic, and accuracy is great. If you want a bullpup rifle, definitely check it out.
